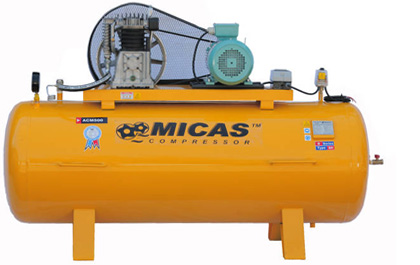

  Piston Compressor (SH Series)   ACM500-SH

  • Should be installed in a suitable location and compressed air supplied through a piping network in workshop area (although movement is still easily possible)
  • Provides the functionality of using a central compresses air production unit
  • Air block qualified for long time operation
  • Suitable for: Devices such as pressing Machine, pneumatic fixtures, yielding & cutting equipment, painting tools, wood industry machinery, print and packing industry machinery, air and pneumatic tools
  • Power Transfer: Belt Drive
  • Available Capacity: 500, 750, 100, 1500, 2000 liter/Min









SH Series Piston Compressor Specification Table

Tank

Liter
Noise

Db(A)
Electricity Stage Cylinders Power Operating Pressure

Bar
Capacity

Liter/Minute
Type Model
Hz Volts HP KW
500 80 50 380 2 2 5.5 4 10-12 480
SH
SV
CV
SC
ACM 500
500 80 50 380 2 2 7.5 5.5 12 620-700
SH
SV
CV
SC
ACM 750
